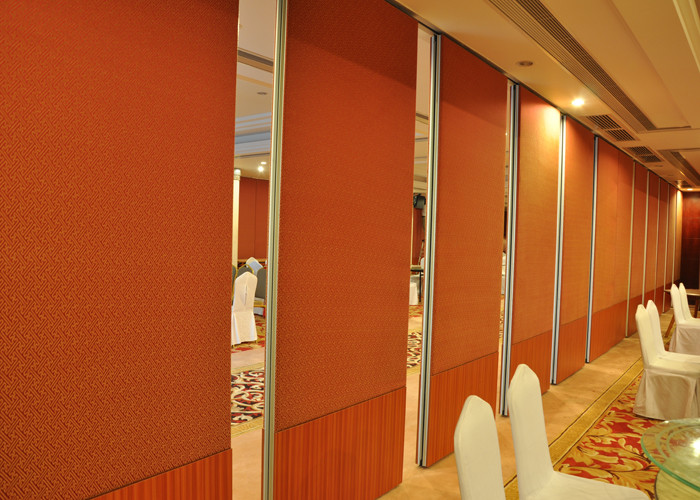

Bunge movable partition walls is made of high quality anodized aluminum frame with environmentally composite materials . The panels move on a ceiling track with no requirement of floor guides or rails ,
and they have a standard thickness of 65mm , 80mm and 100mm , and a width up to 1230mm . Maximum height can reach 13meter tall.
The accordion wall panel consists of a series of concave / convex profile interlocking flat panels and the fast set retractable top and bottom seals , it provides excellent acoustic insulation property of from STC - 32 to 53 in laboratory setting. Its high performance per dollar value and the easiest in-field operation makes it very suitable for restaurant , schools , office , religion , hospitals , shopping arcades and many other indoor applications product.
Retractable room dividers wide of range face finishes are available : melamine faced MDF or Plywood , fabric , carpet , fabric , artificial , leather , wood veneer , high pressure laminate , Formica , acoustic panel , white boad ect. , panels may also be supplied unfinished for field decoration , Standard frame color is clear anodized aluminum , custom powder coating colors are available.
Bunge has adopted the advance partition technology of USA , Germany and Denmark . We have professional staff with more than 10 years of experience in design , production and installation.
Specifications of partitions:
Technical Parameter
for Partition Panel | Panel Width | 500 - 1230mm |
| Panel height | 2000 - 6000mm |
| Sound proof | 36 - 42db |
| Operation | Manual |
| Frame | Aluminum |
| Vertical profile | Anodised aluminum profiles with integrated magnetic
strip and sealing edges on the inside |
| Finish options | Fabric , veneer , HPL melamine , vinyl , carpet , customers own material,
Bare finish |
| Base options | Plywood , Gypsum , steel , MDF |
| Max width | Unlimited |
| Panel weight | 25 - 40 kg / sq |
| Pass door selection | door | Single or double door |
| Seals | Top | Manual |
| bottom | Manual |
Features:
- Top hung system without the need for a floor track
- Retractable top and bottom seals ensure effortless movement of panels
- Combines elegance with robust construction
- Concealed or exposed panel edge profiles
- Numerous panel stacking options for complete flexibility
- Sealed for life roller assemblies provide smooth and silent movement
- The system offers various levels of sound reduction
- Extensive range of surface finishes available
Track:
Suitable used in :
1 . studios , recording rooms , listening rooms , rehearsal rooms and more professinally interspace timbre projects .
2 . theaters , indoor gymnasiums , discos , KTV rooms and more performance and entertainment location .
3 . meeting rooms , offices , halls , hotels and more sound absorption and secrecy projects .
4 . air-port , railways , bus-stops , manufactories , workshops and more noise reduction projects .
The section configuration of special wooden acoustic panel: substrate, felt and surface.
1) Substrate ( basal material ) : based on high quality of 12 / 15 / 18 mm MDF with density of 750kg / m3 ,
more choices for basal material : HDF, E1 ECO-friendly MDF and Fireproof MDF ( B1 grade ) .
2) Feld : acoustic fleece , pasted on the back of the panel , noise reducible and fire resistant ( made in CHINA , GERMANY AND FRANCE )
3) Surface : available in three different finishes : real wood veneer , printed wood melamine finished and fireproofing surface .
We Offer:
◆ A full professional design service
◆ Survey and installation guide
◆ Using top quality materials and components
◆ A fully experienced work team
◆ Maintenance contracts to ensure your valuable asset remains in full work order.
