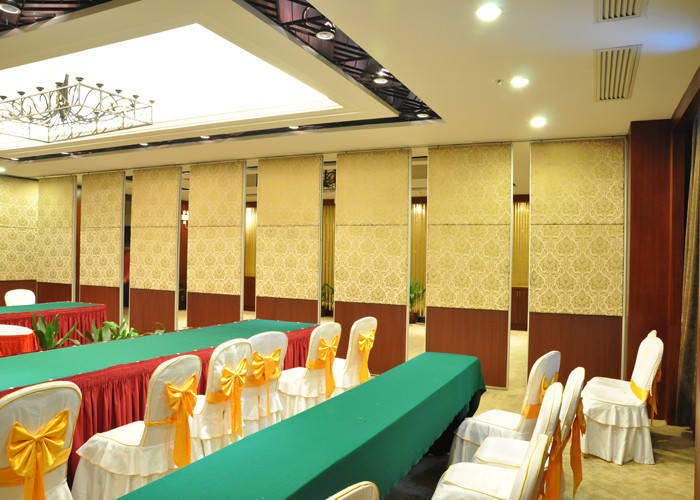

Folding partition walls removable soundproof room divider operable partition wall for conference center
Description:
Folding partition walls are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost-effectiveness, they allow large rooms to be conveniently sub-divided to maximize space insulation. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches, conference and function suites, exhibition centuries, banks, and restaurants.
Technical parameters:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with
double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied
operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or
double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc. (Customized) |
Feature:
Easy To move and soundproof
Thanks to the exclusive system: Polymer coated, self-lubricating, wear-resistant ball-bearing trolleys.
Technical reliability
In its versions, the range has undergone the most stringent endurance and mechanical resistance tests in laboratories or in its own Test Center. 3-years warranty for parts and labor.
Quick to install
Tool locking of top and bottom rubber seals thanks to a manual system in each panel.
Framework (stylist)
Aluminum profiles that become totally invisible when flat by means of a hollow joint system.
Introduction:
The sliding partition wall is our individual panel partition system offering an acoustic insulation rating of up to 53 dB.
Ideally suited for high specification applications due to the sheer flexibility, numerous stacking arrangements available and the impressive acoustic qualities this system offers.
The panels are operated by means of an internal scissor-jack mechanism and move effortlessly along an aluminum head track, when closed they form a securely fixed wall.
The movable wall system is a high quality bespoke movable wall system to suit timber panels up to 150 kilograms in weight, there are multiple options for door types, parking areas, and track layouts.
Each door is a top hung straight sliding panel which sits in line with the other doors these panels can be moved into a parking area when the wall needs to be opened, pivot panels can be fixed or converted into sliding doors. Timber movable walls can be created to suit any space within reason.
