Sound Insulation Movable Partition Walls Convention And Exhibition Center Hall Mobile Doors

Convention And Exhibition Center Hall Mobile Doors Movable Wall Partition

We are the manufacturer and supplier of the Interior Movable Partition Wall Folding Sliding.
Partition Walls are custom built movable walls for keeping efficient open spaces. Our system is top hung system without track.Let us help you find the best flexible solution for your environment and turn the room you have into the space you need. Designed especially for space where different uses and flexible layout changes are required.

BUNGE partition description:

The BUNGE Partition Walls is aluminum-framed operable partition is the most versatile operable wall constructed today. Partitions are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3.3")or 100mm(4") thick models, and in single, pair hinged configurations. Ultra-high type is designed for movable partition as high as 7 m to16 m with max soundproof rate 53 dB. Load bearing of each meter is more than 2000 kilograms, pulley bearing more than 1600 KGS, used in large place, such as banquet hall, multi-function hall, exhibition center, gym and conference room. Ultra-high type partition is top hung system, hanging wheel sliding in the track smoothly and stability without vibration, the 16 meters high partition can easily moved even being pushed at waist-high. With build-in oriental device, the panel can make a turn automatically as sliding in the straight rail.

Its Specifications are:
Panel Suspension:Top hunge system without the need for a floor track.
Panel Width: Each panel 600mm-1200mm.
Track: : Aluminum OR Steel Track Roller
Panel: Single
Frames: Heavy-duty steel-gusseted aluminum inner frames reinforced with full height.
Top and bottom seals: : Top and bottom pressure retractable seals ensure effortless moved and locked.
Module: 700mm - 1200mm maximum.
Panel stacking: : Numerous panel stacking options for complete flexibility.
Panel face: MDF,Plywood, woven fabric, Leather,Natural wood veneer, Melamine,Wood moldings, etc.
Finishes: Satin anodised or polyester powder coating to all exposed aluminium components available in a wide range of colours as standard.

Our Advantage are:
Our easy lock-up set, Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle. Retractable Pressure Seals--Once the panel is positioned, they are sealed in place with retractable pressure seals
Telescopic sleeve panel--Final closure of the wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panel can seal the wall tightly to reach acoustic integrity.

movable walls on wheels

acoustic movable walls

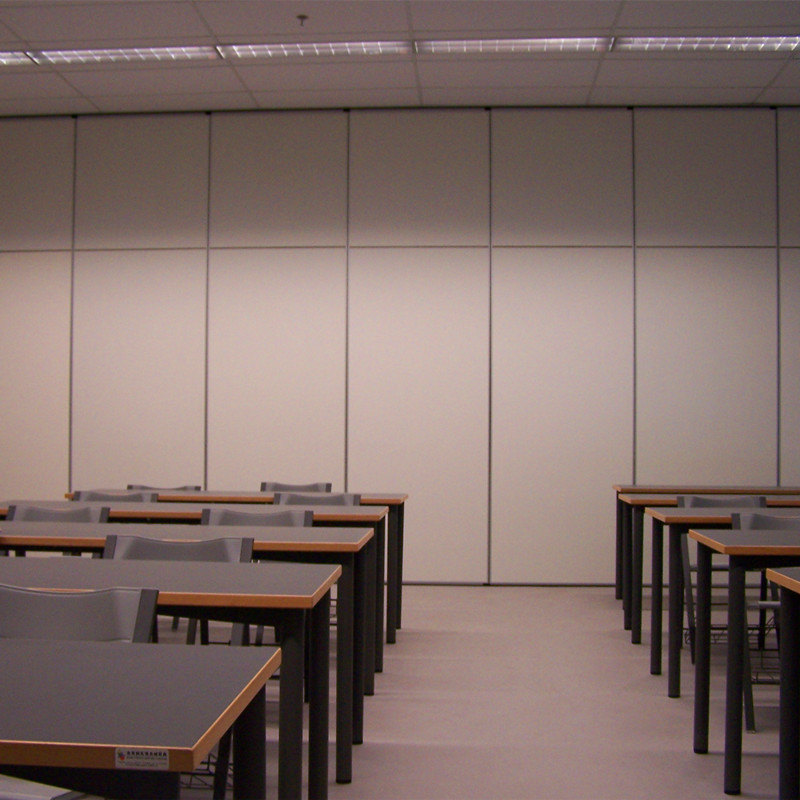

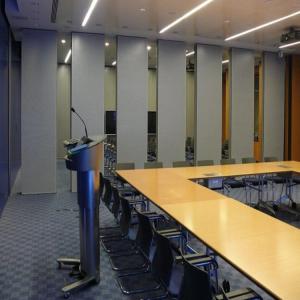

Sound Insulation Movable Partition Walls Convention And Exhibition Center Hall Mobile Doors Images
