Acoustic Folding Sliding Wall Partitions Conference Room Movable Partition Walls
Feedback of movable partition walls accessories
There are more than 60+ kinds of accessories for the partition walls, which can form a whole sealing system. We have more than 10 tons stock of partition walls accessories in our factory now. Normally we can provide the partition walls tracks accessories to our client, such as the aluminum tracks and the trolley bearings. So if our client need to buy the partition walls accessories,we can start package and delivery immediately. We have exported the partition walls accessories to many countries,such as the Colombia, New Zealand, Ireland, America, Sri Lanka, Australia and so on.

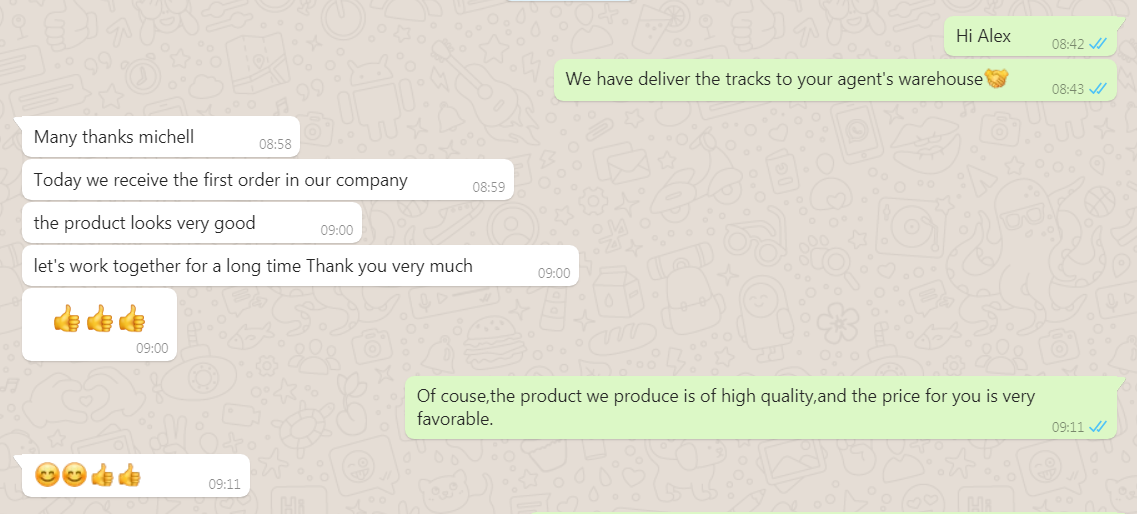

The following picture is about the feedback from our client who comes from Califoria, a very nice person and he also produce the partition walls,just importing the movable partition walls accessories. And he gave me return order regularly.
Movable partition walls details
Medium and high-grade practical movable partition walls.
85 type movable partition walls thickness is 85 mm movable partition. The frame material is made of aluminum alloy material to make practical partition screen products.
Sound insulation coefficient range: 35db-50db
Applicable height range: 2 meters - 5.5 meters
Applicable places: star hotel, function hall, conference room, banquet hall, restaurant, office, etc.
Partition wall material: high hardness aluminum alloy, high quality steel, PAR sound absorbing glass fiber, green wood veneer, etc.
detail intruduction
The distance from the ceiling to the load-bearing structure is 180 mm;
Movable partition walls technical information
| TYPE | 65 | 85 | 100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,Heights greater than 3000mm refer to our Technical Dept | Up to 6000mm,Heights greater than 6000mm refer to our Technical Dept.inset Pass doors above 2400mm.Full Height pass door up to 3000mm high Document 'M'disabled doors-optional |
| Max height | 4000mm with heavy duty track | 6000mm with heavy duty track | 18000mm with heavy duty track or steel track |
| Panel width | 600-1200mm | 600-1200mm | 600-1200mm |
| Frame construction | Aluminium/steel | Aluminium/steel | Aluminium/steel |
| Face material | 12mm | 12/15/18mm | 12/15/18mm |
| Fire safety | optional Class I or O | optional Class I or O | optional Class I or O |
| Vertical profiles | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional | Aluminium,anodised with sealing profiles,painted-optional |
| Retractable seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals | Aluminium,black with double rubber seals |
| Operation of seals | Manual,with supplied operating handle | Manual,with supplied operating handle | Manual,with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass Doors | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel | Single open in oanel or double open in two panel |
| Sound insulation | 40,44,47,50dB Rw | 40,44,47,50,53dB Rw | 40,44,47,50,53,58dB Rw |
| Weight | Approx 33-40kg/sq M | Approx 43-50kg/sq M | Approx 63-70kg/sq M |
