Movable Wall Track Exhibition Acoustic Room Dividers with Portable Hanging System

Brand Name : BUNGE

Model Number : Series 85 mm acoustic room divider

Certification : ISO9001

Place of Origin : China,Guangzhou

MOQ : 10 square meters

Price : 95 / 124 dollar per square meter

Payment Terms : D/A, D/P, L/C, T/T, Western Union, MoneyGram

Supply Ability : 5000 square meters per month

Delivery Time : Shipped in 10 days after payment, based on the quantity.

Packaging Details : Carton package, MDF batten on four section sides ,foam board on both front face.

Panel Type : Melamine

Open Style : Folding

Application : Exhibition,restuarant

Function : Soundproof

Thickness : 85 mm

Height : 6 m

Color : Multi color

Contact Now

Portable Hanging System Movable Wall Track Exhibition Acoustic Room Divider


Description:

The acoustic room divider is the highest specification range of fully operable, individual-panel movable partitions system. Acoustic insulation of up to 56 dB noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple in fill's and a panel assembly design that allows an acoustic break between the frame and outer layer.

The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in three thickness, 65 mm, 85 mm and 100 mm, depending on acoustic rating (from 37dB–56dB).

Movable Wall Track Exhibition Acoustic Room Dividers with Portable Hanging System

Advantage :

1.Acoustic room divider is modernized decoration style. It can separate the space speedy and conveniently. And it has sound insulation and heat insulation and fireproof function.
2.The Partition Board is made from high density frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.
3.The finish board is inserted in the aluminum track, assembled with muti direction wheels; the board can be stored in may different ways.
4.It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style.
5.Around the board ,there is sound insulation rubber, it can help to insulate the sound entering.
6.The operation ways is much easier, it’s better than the old ways which was use spring before.

Operation:

When the operable seals are retracted, panels glide effortlessly and quietly along the unique aluminium overhead track system (no need for floor guide).
Telescopic end panels enable the wall to be locked off to complete the acoustic seal. The track and carrier system provides ease of operation and directional flexibility, allowing panel stacking in countless configurations.
Movable Wall Track Exhibition Acoustic Room Dividers with Portable Hanging System

Technical information:

TYPEBG65BG85BG100
Panel suspensionTop hung only
Track systemSingle or twin point
Panel thickness65 mm85 mm100 mm
Panel heightUp to 4000mm,heights greater than 3000mm refer to our technical dept.Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional.
Max height4000mm6000mm18000mm
Panel width

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

500 - 1200mm

1' 5/8" -- 4'

FrameAluminumAluminumAluminum
Surface material9mm9mm12mm
Fire safetyOptional class IOptional class IOptional class I
Vertical profilesAluminum, anodized with sealing profiles, painter optionalAluminum, anodized with sealing profiles, painter optionalAluminum, anodized with sealing profiles, painter optional
Retractable sealsAluminum, black with double rubber sealsAluminum, black with double rubber sealsAluminum, black with double rubber seals
Operation of sealsManual, with supplied operating handle
LockingOptional lock to passing doors
Passing doorsSingle open in one panel or double open in two panel
Sound insulation32-38dB Rw36-45dB Rw42-55dB Rw
WeightApprox 22-35kg/sq MApprox 25-40kg/sq MApprox 30-48kg/sq M


We can offer:

A full professional design service.
Survey and installation guide.
Using top quality materials and components.
A fully experienced work team.
Maintenance contracts to ensure your valuable asset remains in full work order.

































Product Tags:

sound proof room divider



banquet hall room dividers


Wholesale Movable Wall Track Exhibition Acoustic Room Dividers with Portable Hanging System from china suppliers

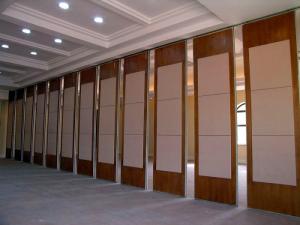

Movable Wall Track Exhibition Acoustic Room Dividers with Portable Hanging System Images
