Office Room Acoustic Soft Cover Both Side Movable Sliding Partition wall
1. Product Description
(1).The movable partition wall has a basic function that is separating the interior space.
(2).It can divide a large space into a small space or a small space into a large space at any time, according to different customers' needs, and has a general wall function.
(3).Mainly benefits of the partition wall is that has high sound insulation, fire prevention, sliding and folding, and easy operation.
(4).It has been widely used in hotels, ballrooms, multi-function halls, conference rooms, banquet halls, office buildings, exhibition halls, dancing rooms, and other occasions.
(5).Bunge's reputation for quality and reliable products, clever designs, and an insistence on excellent service is the reason why architects, engineers, and contractors routinely insist on Bunge partition walls for their building projects.
2.Technical Information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodized with sealing profiles | Aluminum anodized with sealing profiles | Aluminum anodized with sealing profiles |
| Retractable seals | Aluminum black with
double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied
operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or
double open in two panel | Single open in a panel or double open in two panel | Single open in a panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wallpaper, Vinyl, Painting, etc. (Customized) |
3.Package and Shipping.
Product Tags:
|
|

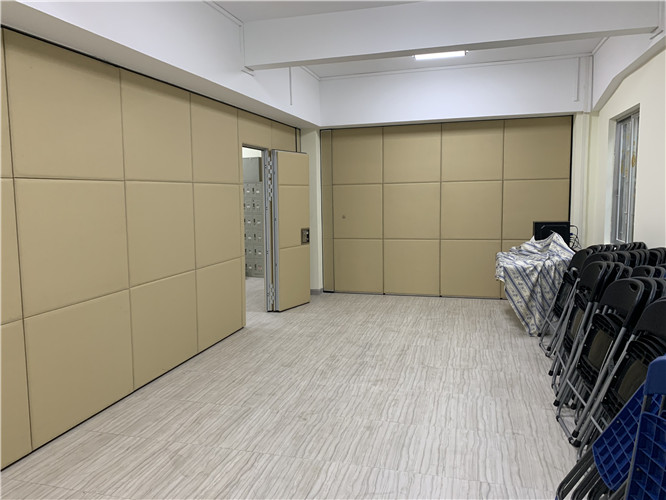

Office Room Acoustic Soft Cover Both Side Movable Sliding Partition Wall Images
|
