fire resistant movable soundproof sliding acoustic hotel project 85 mm series wall partition
The function characteristic of mobile screen
This product has many functions (no ground suspension, stability and safety, sound insulation, fire protection and environmental protection) and flexible variability (flexible collection and release, convenient collection), efficient interval makes all types of space change quickly, simple operation, improve efficiency, reduce the cost of decoration
| Modernized Soundproof Movable partition |
| 1.Hanging on ceiling | The floor without a track, just put the rail mounted on the ceiling |
| 2.Excellent Quality | Each pieces of partition can turn around 360 degree. |
| 3.Stable and secure | After partition is stable and reliable, and is not easy to swing |
| 4.Energy efficient | The large space divided into a small space, in order to reduce air conditioning power consumption; |
| 5.Heatproof&fireproof | Good heat insulation performance, Adopt effective fire prevention materials |
| 6.Elegant appearance | Surface any adornment, can unite with indoor adornment effect |
| 7.Easy to collect | Can be hidden in the special coffer, does not affect the overall appearance |
| 8.Various applications | Hotels, exhibition halls, restaurants, multi-functional rooms etc. |
The use of mobile walls
All products are suitable for hotel, conference room, multi-function hall, exhibition hall, library, museum, culture square, gymnasium, training institution, office, school, KTV, hospital, shopping market, etc
Model of moving wall
| Series | BG 65 | BG 85 | BG100 |
| Panel supension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 400 mm | 600 mm | 800 mm |
| Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
| Face material | 9 mm | 9 mm | 9 mm |
| Pass doors | Single Door or Double Door |
| Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
| Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum |
| Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) |
Three types of partition plates
Wave glue board: the first board in whole group screen, install wave glue strip to prevent bump original wall.
Common board: the middle of complete group screen is common board, there is ox nose, cow nose on left and right sides and the two boards that join together are connected closely each other, form better sound insulation effect.
Telescopic panel: the last panel in a group of screens.
Track installation
Installation conditions
1: floor or steel frame can bear the weight of partition wall
2. It depends on the specific project
Integral structure of partition plate
Our company show
Guangzhou Bunge Building Material Industry Co .,Ltd is a profession company in manufacturing Movable Partitions .It also artistically designs and carefully does research and development (R&D).The company has adopted the advance partition technology of USA, Germany and Demark .We have profession staff more than 10 years of experience in design ,production and installation.
Product Tags:
|
|

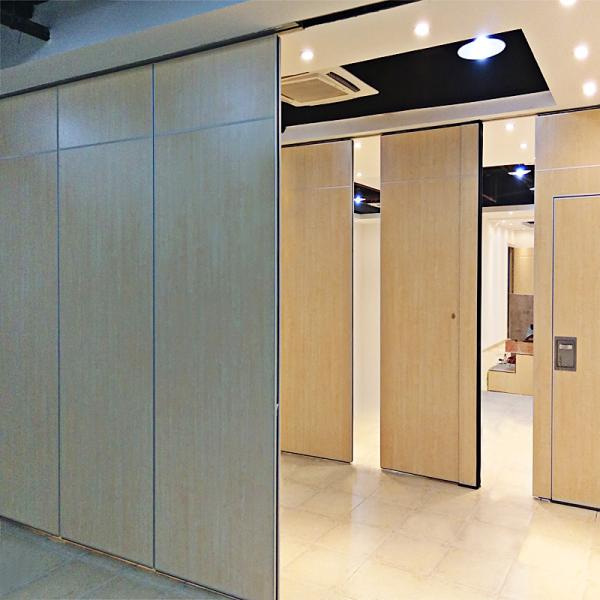

Fire Resistant Sliding Folding Partition Walls / Movable Room Dividers Images
|
