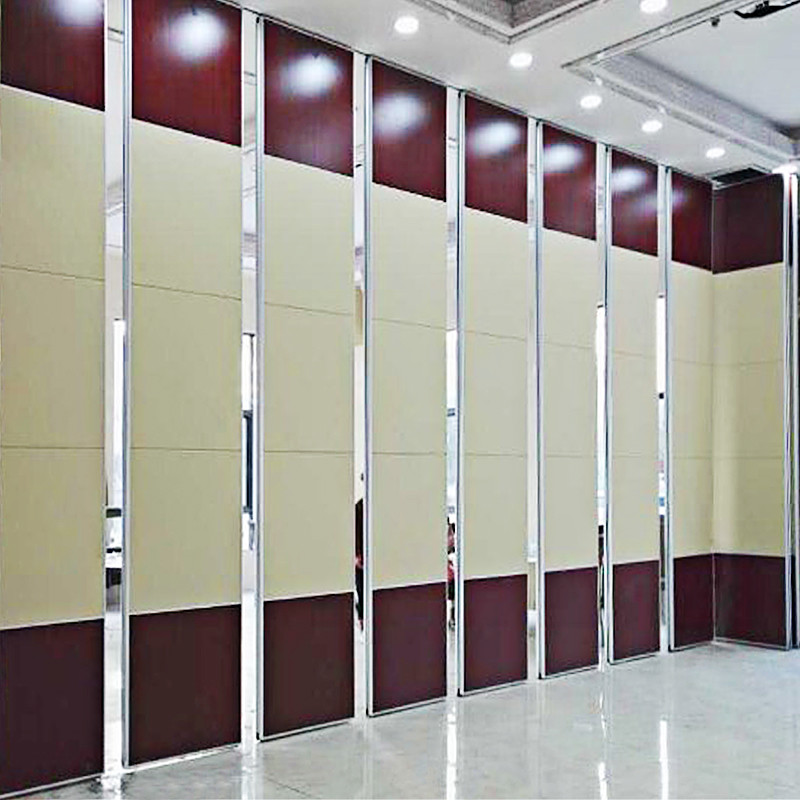

Aluminum frame 85mm thickness soundproofing operable folding partition wall for hotel
Product Description
Bunge 85mm folding partition wall divide your space flexibly with high sound insulation performance.no need floor track,top hung system. Its magnetic strips are set on the adjacent panels edges ,they will attracted by each other automaticly when they are close enough,have good seal and acoustic performance,each panel limit weight is 450KG,top and bottom telescopic range are 22.5MM.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm |
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point |
| Frame construction | Aluminum frame |
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Feather and Benifits
1.Interlocking male / female trapezoidal vertical aluminum profiles, for soundproof connection between elements.
2.To ensure additional friction connection, shall be integrated with magnetic strip.
3.Spring load retractable sound seal at the top and bottom element.
4.Face panel hung in acoustic free suspension, for improved sound insulation, easy redecoration of surface panels. Edges shall be protected with aluminum profiles.
5.Easy element adjustment after installation.
6Track system shall be Extruded aluminum, maintenance free with heavy-duty ball bearing steel rollers.
7.Surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.
8.Consists of required full wall elements and telescopic elements with 2-point suspension system with steel-roller, extruded aluminum track.
Advantages:
1.Movable partition board is modernized decoration style. It can separate the space speedly and conveniently. And it has sound insulation and heat insulation and fireproof function.
2. The Partition Board is made from high density s/s frame, special made rubber, excellent sound insulation cotton and finish board etc. the finish board is flat and hard.
3. The finish board is inserted in the aluminum track, assembled with multi direction wheels; the board can be stored in may different ways.
4.It doesn’t need track on the floor, we only hang the track on the ceilings and it can be at the same plane with the ceiling decoration. It won’t affect the whole decoration style.
5. Around the board ,there is sound insulation rubber, it can help to insulate the sound entering.
6. The operation ways is much easier, it’s better than the old ways which was use spring before.
7.We can add single or double doors on the board for convenience.
8. We have many different finish to meet customer different requirement and get different decoration effect.
Applications:
Our products (Movable Partitions) are widely used in the hotel banquet halls, meeting rooms, exhibition halls, conference rooms, International Convention Centers, KTVs, upscale restaurants, office buildings, schools, hospitals and others.
