Acoustic Movable Operable Partition Wall For Hotel Space Separating

Guangdong Bunge Building Material Industrial Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Acoustic Movable Operable Partition Wall For Hotel Space Separating

Brand Name : EBUNGE

Model Number : 65 Series Partitions wall

Place of Origin : China(mainland)

MOQ : No MOQ

Price : USD 80-90 Square meters

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000 Square meters per month

Delivery Time : 15 days

Packaging Details : Partition board paper packaging, and finally packed in wooden carton

Product name : 65 Series Partitions wall

Material : fabric or leather

Thickness : 65 mm

Advantage : movable soundproof

Height : Max 4000 mm

Usage : Banquet Hall And Office

Contact Now

Soundproof Space Separating Acoustic Movable Operable Partition Wall Price For Hotel

Movable Partition Wall Description

The main advantage of these sound proof wall dividers is the ability to use ceiling rails to support the floor. This is the most common specification because it avoids the need for floor track structures. This is very important for existing buildings where you don’t want floor track to get in the way.

When not in use, the plates are hinged together or stacked at one or both ends. One end panel is usually an access door, which is very useful. The standard soundproof partition can provide up to Rw 45 dB sound reduction.

They are made up of single panels suspended from head rail, and the panels may be stacked at the ends of the partitions or remotely in the appropriate stacking area. Access doors are available. The sound reduction can be enhanced by moving the retractable top and bottom seals.

All the sound proof partitions are customized according to the size required, from the classroom, office to large stadium and conference center.

Sound proof partitions are usually used in schools, offices, hotels, universities, leisure centers, churches, etc., which provide a wide range of possibilities for more efficient use of available space. We will be happy to discuss your detailed requirements and advise on options.

Acoustic Movable Operable Partition Wall For Hotel Space Separating

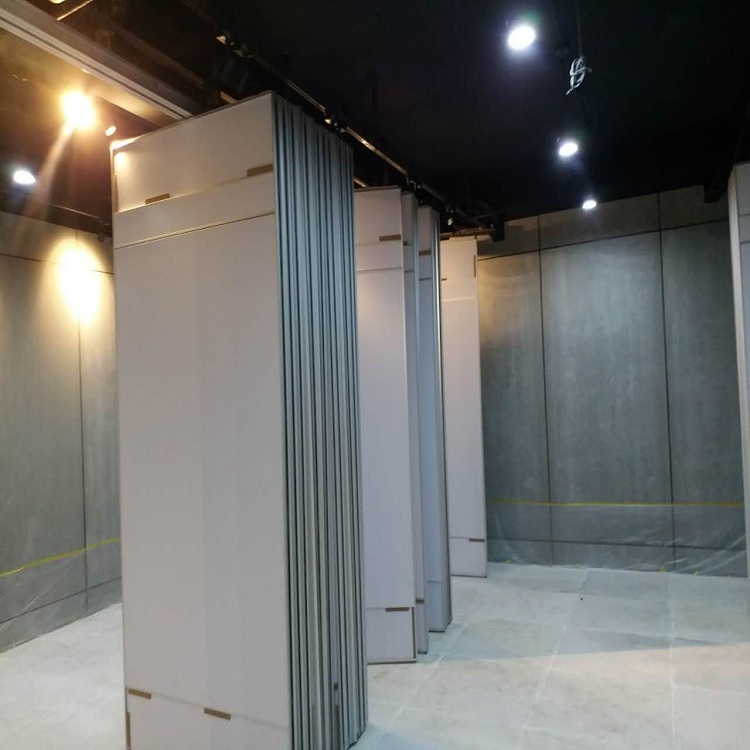

Installation site of partition wall

1: Installation track

Track is the base, is the priority among priorities of all links, through percussion drilling expansion screws, welding Angle iron and other steel materials fixed up.

2: Insert the door panel

The moving door panels are suspended in the rails without any support on the ground.

3: Installation and debugging

Free and flexible, move the door panels according to whatever you need to change the layout

4: Close against the wall

Convenient collection, save space

Acoustic Movable Operable Partition Wall For Hotel Space Separating

Technical Details

Series BG65 BG85 BG100
Panel suspension Top hung only Top hung only Top hung only
Panel thickness 65mm 85mm 100mm
Max height 4000mm 6000mm 18000mm
Panel width 500-1200 mm 500-1200 mm 500-1200 mm
Face material 9mm 9mm 12 mm
Passdoors Single door or Double door
Sound insulation 28-38dB Rw 28-42dB Rw 32-50dB Rw
Finish Material Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc.(Customized)

Acoustic Movable Operable Partition Wall For Hotel Space Separating
