Soundproof Indian Restaurant Movable Wall Partition for India Restaurant
Product Description
1) When moving a wall panel, there is a 20-25mm gap between the top of the panel and the underside of the head track, there is a similar gap between the bottom of the panel and the floor.
2) Once a panel is positioned, acoustic integrity is maintained along the top and bottom of the panel by extending pressure seals.
3) The pressure seals are extend and retracted by a single 180 degree turn of removable operating handle.
4) Final Closure of the wall is achieved by extending a telescopic sleeve on the last panel. This action simultaneously extends the top and bottom seals.
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 8000mm |
| Panel width | 600-1230mm |
| Face material | 9mm | 9mm | 12mm |
| Sound insulation | 20-32db RW | 30-38db RW | 35-45db RW |
| Weight | 20-30 kg/sq M | 22-35kg/sq M | 28-40kg/sq M |
| Track system | Single or two point |
| Frame construction | Aluminum frame |
| Finish materials | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Technical Description Feature
1. Top hung system without the need for a floor track
2. Retractable top and bottom seals ensure effortless movement of panels
3. Combines elegance with robust construction
4. Concealed or exposed panel edge profiles
5. Numerous panel stacking options for complete flexibility
6. Sealed for life roller assemblies provide smooth and silent movement
7.The system offers various levels of sound reduction
8.Extensive range of surface finishes available
Finsh Options
Available in a wide range of colors and finishes, including: fabric, leather, wood veneer, melamine, bare MDF board etc.
About Procurement procedure
Firstly , send us the shop drawings(if the shop drawings is not available , you can tell us the height from false ceiling
to finished floor and width from wall to wall)
Secondly , we offer you the movable wall layout drawings for your confirmation
Thirdly , we quote the movable wall in accordance with confirmed drawings .
About installation
We will provide the installation manual and video guiding the installation job . We can also dispatch the installation engineer supervising the installation as request .
About after service
1. We are very glad that customer give us some suggestion for price and products.
2. If any question, please let us know it in the first by Email or Telephone. We can deal with them for you in time.
We Offer:
1.No floor track and soundproof partition wall
2.OEM and ODM services accepted
3.Free sample provided
4.Quiet shipping within 15 days
5.Get product warranty for 3 years and accessories warranty for 10 years
About Us
Guangzhou Bunge Building Material Industrial Co., Ltd is a professional company in manufacturing Movable Partitions. It also artistically designs and carefully does research and development(R&D).The company has adopted the advance partition technology of USA, Germany and Denmark. We have professional staff with more than 10 years of experience in design, production and installation.
Product Tags:
|
|

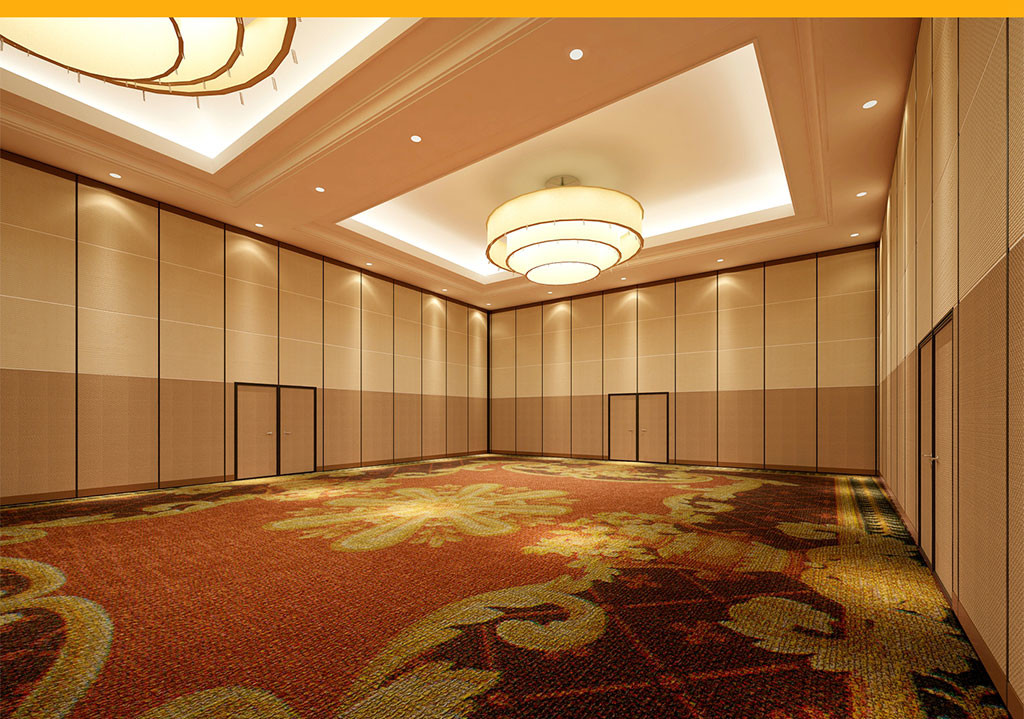

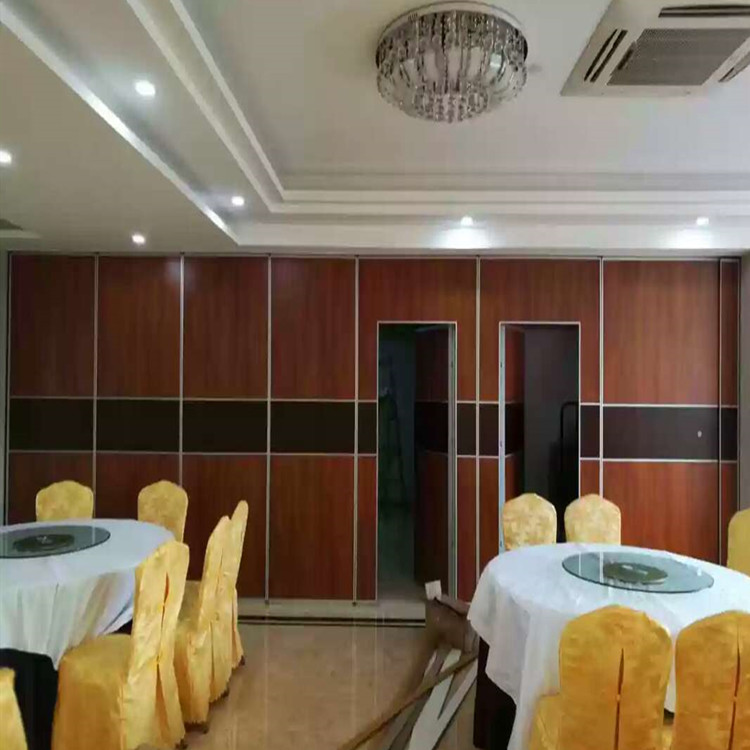

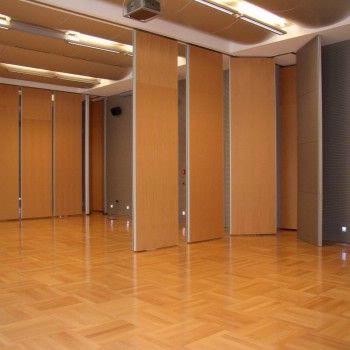

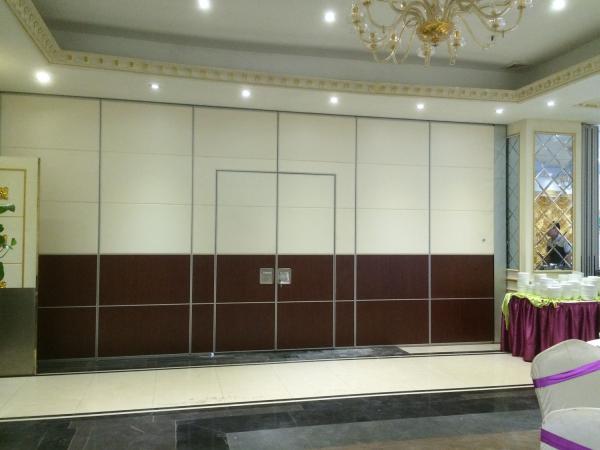

Soundproof Indian Restaurant Movable Wall Partition for India Restaurant Images
|
