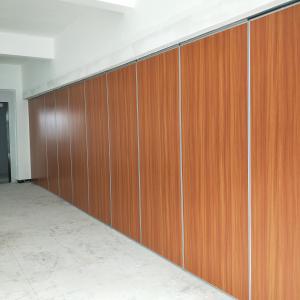

Sound Proof Room Partition Material Acoustic Movable Partitions Wall Panels
Movable partition walls details
Movable partition walls are specified where functional space delineation is an integral element within the movable partition walls project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximise space utilisation. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches,conference and function suites, exhibition centres,banks and restaurants.
We design and manufacture value for many products with one year's warranty on all the outstanding ranges illustrated in this brochure.
They offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
Technical data of Type 65 movable partition walls:
| Model | Weight
(kg/m) | Fire Rating(min) | STC Performance | Specification | Carrier |
Thickness
(mm) | Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) |
| BG65-32 | 22 | 60 | 32db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 | 60#
65#
80# |
| BG65-38 | 27 | 60 | 38db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 |
| BG65-45 | 35 | 60 | 45db | 65 | 680-1212 | 2000-4500 | 22.5/35 | 22.5/35 | 140 |
Technical data of Type 80 movable partition walls:
| Model | Weight
(kg/m) | Fire Rating(min) | STC Performance | Specification | Carrier |
Thickness
(mm) | Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) |
| BG80-40 | 30 | 60 | 40db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 | 60#
80# 100# |
| BG80-45 | 38 | 60 | 45db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 |
| BG80-48 | 47 | 60 | 48db | 80 | 680-1212 | 2000-5500 | 22.5/35 | 22.5/35 | 140 |
Technical data of Type 100 movable partition walls:
| Model | Weight
(kg/m) | Fire Rating(min) | STC Performance | Specification | Carrier |
Thickness
(mm) | Width(mm) | Height(mm) | Top Seal(mm)/ Pressure(kg) | Bottom Seal(mm)/ Pressure(kg) | LCP stretch (mm) |
| BG100-43 | 38 | 60 | 43db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 | 60#
80# 100# |
| BG100-48 | 46 | 60 | 48db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 |
| BG100-53 | 55 | 60 | 53db | 100 | 680-1219 | 2000-7500 | 30/40 | 30/40 | 140 |
Movable partition walls features:
Individual panels that can be stored away for Maximum space usage.
Operable top and bottom seals for effortless operation.
Aluminum frame construction for enhanced acoustics.
The system offers various levels of sound reduction.
Unique track and carrier system ensuring quiet and easy operation.
Numerous panel stacking options for complete flexibility.
Top hanging and no floor track.
Extensive range of surface finishes can be available.
Movable partition walls benefits:
Hinged pair panels for quick andeasy operation.
Robust aluminum frame construction for demanding environments.
Room divider wide range of surface finishes.
Partial and fully glazed panels available.
Parition divider just top hung supported.
Movable partition walls usage:
Nowadays,the modern trend in buildings needs more flexibility and convenience to use the space of their rooms.Most of the building designers like to prepare open plan space,sound proof effect,and easy to operate.The solution of the designers need is the Movable Partition.
