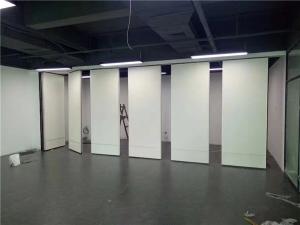

Wooden Movable Panel Soundproof Room Divider Restaurant Folding Wall Partition
Specification:
Our folding wall partition system accessories are custom for each client and project,and they are also made of superior material.Track system for right-angled configurations with cross- roller carriers for element weights up to 500 kg. Support rollers in the junctions guarantee easy operation when sliding the elements across intersections .
Besides the high sound absorbing test,we have passed the Eco-protection test and Fireproof test,to ensure you to get the top quality product, and enjoy a safe , comfortable and low carbon emission way of life on movable and operable partition system.
Feature:
1. Efficient fire prevention: the material of the movable partition is made of fireproof material and has good fireproof performance;
2.Heat insulation: according to different occupancy rates, the space can be divided into small spaces, and good thermal insulation performance;
3.Sound insulation and environmental protection: its sound insulation coefficient can reach 53dB, sound insulation effect is good;
4.Stable and safe: stable and reliable, not easy to swing, shake;
5.No rail suspension: no need to install the ground rail on the floor, its track is installed on the ceiling.
Advantage:
Panel surfaces from veneer to laminates, enabling us to work with your interior design needs.
Manufactured to meet the acoustic requirements for education installations to school, colleges and Universities are second nature.
Product designed for a quick and easy set up operation.
Each panel is hinged together which allows you to move all the panels in one swift effort. We incorporate an access pass door as standard to give you extra space flexibility.
With each project and opening being different this product is ideal when there is no structural support as this system can be floor supported.
This product has been designed with your economical budget in mind,it is the versatile, durable and cost effective solution.
Structure:
The folding wall partition is generally composed of rails, sealing strips, horizontal wheels, reference surface materials, aluminium frames, soundproof materials, transmission rods, and sealing strips. The movable partition screen is not only used in hotels, but also in offices, homes, hotels, conference rooms, high-level clubs, golf course lounges, etc.
Technical information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Track system | Single or twin point | Single or twin point | Single or twin point |
| Panel thickness | 65mm | 80mm / 85mm | 100mm |
| Panel height | Up to 4000mm | Up to 6000mm | Up to 18000mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 600-1230mm | 600-1230mm | 600-1230mm |
| Frame construction | Aluminum frame | Aluminum frame | Aluminum frame |
| Face material | 9mm | 9mm / 12mm | 12mm |
| Fire safety | Optional Class I or O | Optional Class I or O | Optional Class I or O |
| Vertical profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles | Aluminum anodised with sealing profiles |
| Retractable seals | Aluminum black with
double rubber seals | Aluminum black with double rubber seals | Aluminum black with double rubber seals |
| Operation of seals | Manual, with supplied
operating handle | Manual, with supplied operating handle | Manual, with supplied operating handle |
| Locking | Optional lock to pass doors | Optional lock to pass doors | Optional lock to pass doors |
| Pass doors | Single open in panel or
double open in two panel | Single open in panel or double open in two panel | Single open in panel or double open in two panel |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx30-48kg/sq M |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Track system:
Track: The tracks are made from extruded 6063 - T5 anodized aluminium. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.
Panels:The Panels will be made from 12 mm MDF boards and shall be 100 mm thick and 1230 mm maximum width, made to the appropriate acoustic rating and structural backing and mounted in full perimeter extruded aluminium frames with interlocking corner construction .The panel faces shall be finished with selected material.
