Brand Name : EBUNGE
Model Number : 100 Series Partitions wall
Place of Origin : China(mainland)
MOQ : No MOQ
Price : USD 80-90 Square meters
Payment Terms : L/C, D/A, D/P, T/T, Western Union
Supply Ability : 5000 Square meters per month
Delivery Time : 15 days
Packaging Details : Partition board paper packaging, and finally packed in wooden carton
Product name : 100 Series Partitions wall
Material : fabric or leather
Thickness : 100mm
Height : Max 8000 mm
Usage : Banquet Hall And Office
Color : Customized
2019 Customized Restaurant Room Divider Sliding Folding Movable Partitions Wall
Partitions wall design series
The operable wall series is the highest specification range of fully operable ,individual – panel partition system .Acoustic insulation of up to 55 db noise reduction is achieved with a combination of operable top and bottom seals, high performance multiple infills and a panelassembly design that allows an acoustic break between the frame and outer layer ,The vertical channels of each panel incorporate polymer inserts that facilitate an acoustic seal when the panels are set out as a wall. Panels are produced in four thiknesses ,65mm.85mm,100mm,125mm,depending on acoustic rating (from 32db – 55db )
Partitions wall advantages
1:Movable Partition Wall Suspension Systems
2:The aluminum track system is made of natural construction grade aluminum alloy.
3:Each single suspension hanging wall divider panel has vertical metal bearing wheels on the track.
4:Different options for track crossings can be used to meet specific design requirements.
5:Single or dual panel suspension options to accommodate different parking layout designs and requirements.
Series | BG 65 | BG 85 | BG100 |
Panel supension | Top hung only | Top hung only | Top hung only |
Panel thickness | 65 mm | 85 mm | 100 mm |
Max height | 400 mm | 600 mm | 800 mm |
Panel width | 600-1230 mm | 600-1230 mm | 600-1230 mm |
Face material | 9 mm | 9 mm | 9 mm |
Pass doors | Single Door or Double Door | ||
Sound insulation | 20 – 32 db | 28 – 36 db | 32 – 50 db |
Finish Material | Plywood / MDF /Laminate / Melamine / Gypsum | ||
Board / Fabric / Insulation / Fireproof /Wall Paper /Vinyl /Painting /etc,(Customized) |
![]() |

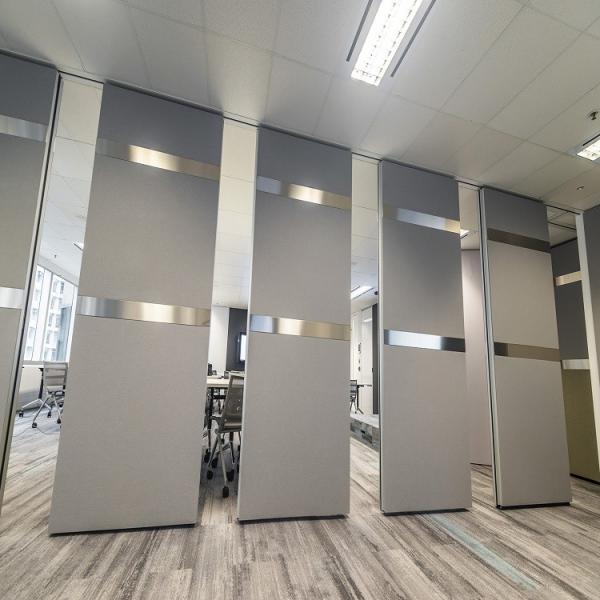

Customized Restaurant Room Divider / Movable Wall Partitions Max 8000 mm Height Images |
