Customized Wooden Acoustic Movable Partition Walls For Artgallery / Office

Brand Name : Bunge

Model Number : Customized Wooden Acoustic Movable Partitions Wall

Certification : SGS,CE etc.

Place of Origin : China

MOQ : 10 square meters

Price : 90 / 110 dollalrs per square meter

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000square meters per month

Delivery Time : 7 to 20 work days ,it depends on the quantity

Packaging Details : Acoustic Soundproof Movable Wall Partitions : Carton package, MDF batten on four section sides ,foam board on both front face.

Material : Aluminum

Series : 85mm partition wall

Style : Folding Door

Surface : MDF board, Fabric, Leather , Wall Paper

Contact Now

Customized Wooden Acoustic Movable Partitions Wall For Artgallery And Office

Specifications

Technical Parameter for Partition Panel Panel Width 23 - 48 inch
Panel height 78 - 156mm
Sound proof 32 - 38 dB
Operation Manual
Frame Aluminium
Vertical profile Anodised aluminium profiles with integrated magnetic strip and sealing edges on the inside
Finish options Fabric, veneer, HPL melamine, vinyl, carpet, customers own material, Bare finish
Base options Plywood, Gypsum, steel, MDF
Max width Unlimited
Panel weight 25 - 40 kg / sq
Pass door selection door Single dor or double door
Seals Top Manual
bottom Manual

Customized Wooden Acoustic Movable Partition Walls For Artgallery / Office

Track:

The tracks are made from extruded 6063 – T6 anodized aluminum. The track housing shall utilize grooves and interlocking steel pins for positive alignment of adjacent track sections, and shall be reinforced overhead by drop rod brackets. Aluminum track housing shall include an integral nut slot to accept a hardened square nut for attaching each drop rod bracket to the top of the track.

Trolley:

BUNGE Centre/ Side /Remote stacking system with a Two wheeled nylon trolley made with the base Material of POM 45 tempered steel shall be used as per approved stacking method.

Aluminum trim: The panel trims will be standard series with exposed Aluminum trims of 15mm thickness finished in 6063 – T6 Anodized Aluminum shall be used.


Seals:

Vinyl seal of butane rubber will be used as top and bottom and as well as closure seals for the operable wall system. Retractable seal drop will be 23mm.


Acoustic insulation Material: Rockwool sound absorption glass fiber shall be used.


Magnetic Strip: Ferrite plastic magnetic material will be used in between aluminum profiles to enhance acoustic performance of the wall.

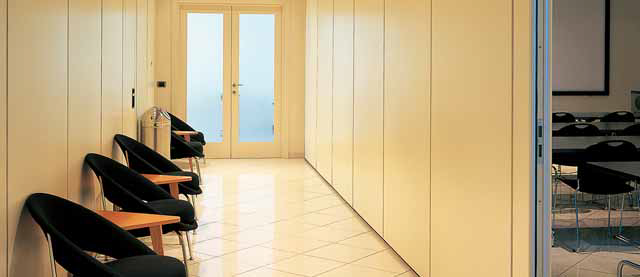

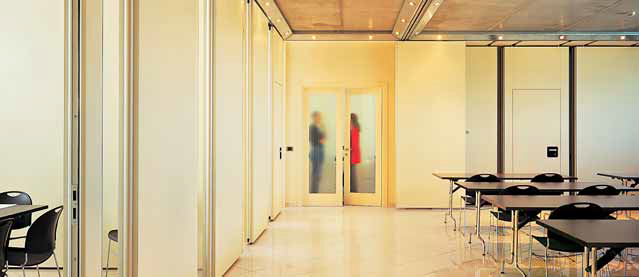

Successful Case of Customized Wooden Acoustic Movable Partitions Wall

Customized Wooden Acoustic Movable Partition Walls For Artgallery / Office

Customized Wooden Acoustic Movable Partition Walls For Artgallery / Office

Customized Wooden Acoustic Movable Partition Walls For Artgallery / Office
