Folding Sliding Floor to Ceiling Restaurant Retractable Screen Room Dividers
Feature:
1.Retractable room dividers can separate the space speedy and conveniently.
2.Muti-function: sound insulation,heat insulation,fireproof function.
3.Top hung system without the need for a floor track.
4.The retractable room divider is made from high density aluminum frame, special made rubber, excellent sound insulation cotton and finish surface, etc.
5.Around the panel, there is sound insulation rubber, it can help to insulate the sound entering.
6.The retractable room divider is hanging on the aluminum track, assembled with muti direction wheels.
7.We can add single or double doors on the movable partition wall panels for entering convenience.

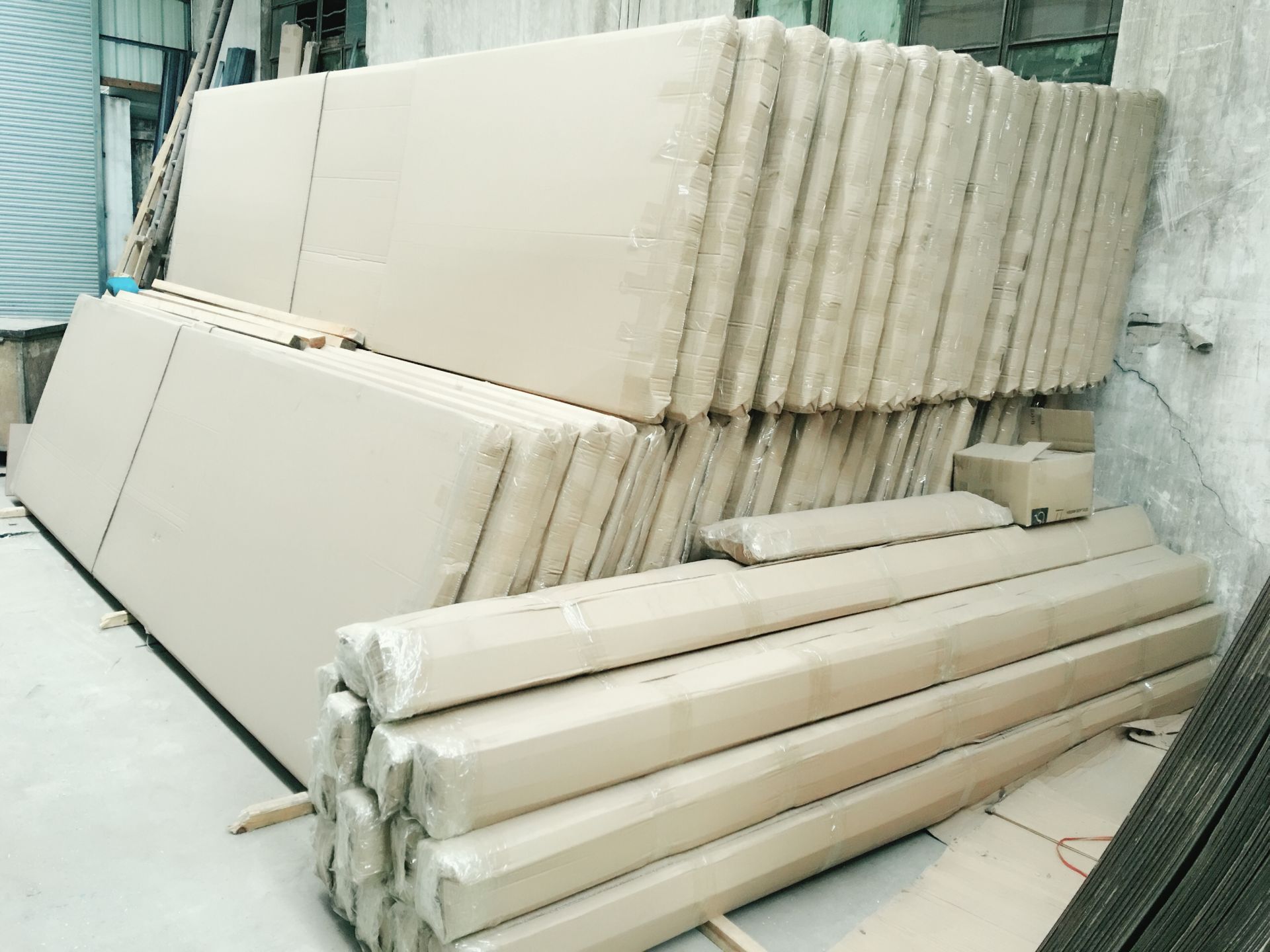

Packaging:
1. Knock down packing usually, Client packing way are welcome
2. Each part is packed with PE Foam Inside and professional corner protection
3. Outside with double strong 5 layers carton boxes,
4. Carton boxes print with the customers Logo and description, inside instruction manual easy for assemble
5. with Glass parts are packed by wooden frame to to avoid fragile
Bunge Operable Wall Systems-Technical Information
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only |
| Track system | Single or twin point |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
| Locking | Optional lock to passing doors |
| Passing doors | Single open in one panel or double open in two panel |
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Common Applications:
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.
2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
