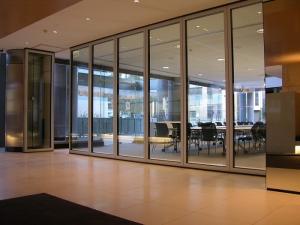

Interior Office 12 mm Tempered Sliding Glass Partition Wall Powder Coating

Guangdong Bunge Building Material Industrial Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Interior Office 12 mm Tempered Sliding Glass Partition Wall Powder Coating

Brand Name : BUNGE

Model Number : 85 mm sliding glass partition walls

Certification : ISO9001

Place of Origin : Guangdong

MOQ : 10 squaremeters

Price : 66 / 102dollars per square meter

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 squaremeters per month

Delivery Time : Shipped in 10 days after payment, based on the quantity

Packaging Details : Carton package, MDF batten on four section sides , foam board on both front face.

Glass : Double Tempered Glass

System : Sliding system

Surface treatment : Powder Coating

Size : Acepted customized

Material : Aluminum clear glass

Type : Office furniture

Service : OEM ODM

Height : 6 meters

Contact Now

Interior Used Office 12 mm Tempered Sliding Glass Partition Wall

Partition door mechanism structure

Bunge Glass Partition Systems-Technical Information

Series BG65 Glazing Glass Partition BG85 Aluminum Frame Glass Partition BG85 Sound proof Glass Partition
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 36mm 85mm 85mm
Panel height Up to 3000mm Up to 6000mm Up to 6000mm
Max height 3000mm 6000mm 6000mm
Panel width 800-1100mm 800-1100mm 800-1100mm
Frame construction Top and bottom aluminum Aluminum frame Aluminum frame
Glass thickness 10mm single glass 10mm or 12mm single glass double 10mm glass
Fire safety Optional Class O Optional Class O Optional Class O
Vertical profiles n/a n/a Aluminum anodised with sealing profiles
Retractable seals n/a n/a Aluminum black with double rubber seals
Operation of seals n/a n/a
Pass doors Fixed full height door Fixed full height door Fixed full height door
Locking Optional lock to panel Optional lock to panel Optional lock to panel
Sound insulation n/a n/a n/a
Weight Approx 30 kg/sq M Approx 32 kg/sq M Approx 50 kg/sq M

Interior Office 12 mm Tempered Sliding Glass Partition Wall Powder Coating

Specification:

1) Easy element adjustment after installation.

2) Track system shall be Extruded aluminium, maintenance free with heavy-duty ball bearing steel rollers.

3) Surface panel shall be of 9mm or 12mm MDF with acoustic treatment to the required level.

4) Consists of required full wall elements and telescopic elements with 2-point suspension system with steel-roller, extruded aluminium track.

Interior Office 12 mm Tempered Sliding Glass Partition Wall Powder Coating

Suitable used in:

1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.

2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.

3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.

Interior Office 12 mm Tempered Sliding Glass Partition Wall Powder Coating

Packing & Delivery

Packing Steps:

Step 1. Put protective tape to protect frames from scratches

Step 2. Keep products fixed on pallets

Step 3. Tie products on the pallets with plastic belts

Step 4. PE films keep windows away from sea water

Step 5. Air bags to be filled between each pallet to keep it steadily

Delivery Time:

25 - 35 working days after payment

Interior Office 12 mm Tempered Sliding Glass Partition Wall Powder Coating


Product Tags:

acoustic sliding partition



sound proof sliding partitions


Wholesale Interior Office 12 mm Tempered Sliding Glass Partition Wall Powder Coating from china suppliers

Interior Office 12 mm Tempered Sliding Glass Partition Wall Powder Coating Images
