Conference Room Decorative Aluminum Clear Glass Sliding Partition Walls

Guangdong Bunge Building Material Industrial Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

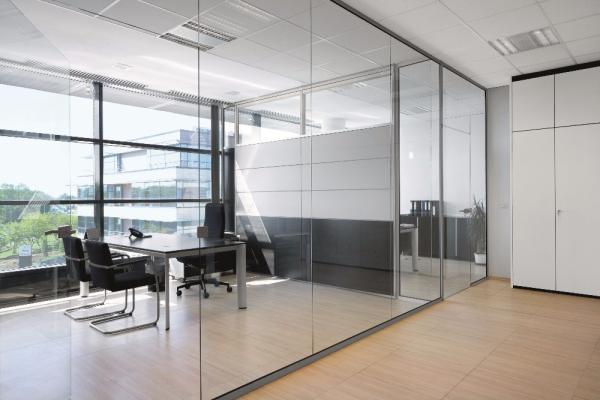

Conference Room Decorative Aluminum Clear Glass Sliding Partition Walls

  • 1
  • 2
  • 3

Brand Name : BUNGE

Model Number : 65 mm sliding partition walls

Certification : ISO9001

Place of Origin : Guangdong

MOQ : 10 squaremeters

Price : 65/ 102 dollars per square meter

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 5000 squaremeters per month

Delivery Time : Shipped in 10 days after payment, based on the quantity

Packaging Details : Carton package, MDF batten on four section sides , foam board on both front face.

Glass width : 65 mm

Application : Office,conference room

Color : Transparent

Position : Interior

Service : OEM ODM

Product name : Aluminum Sliding Doors

Height : 6 meters

Thickness : 12 mm

Style : Sliding

Material : Clear glass

Contact Now

Decorative Easy Operation Aluminum Folding Sliding Doors for Conference Room

Specification:

1. Partition wall thickness: 83mm;

2. General color is aluminum color; other colors are available, and the price will be added;

3. It is easy to install. Total frame will be assembled layer upon layer overlay; Using buckles bar fix the glass or panels, and each glass or panel will be removed;

4.1.5 or more thickness steel tube is in the frame to make the frame stable and strong;

5. MFC panel will be thickness.

6. Whatever horizontal or vertical direction, the partition's dimension error is less than 40mm;

Conference Room Decorative Aluminum Clear Glass Sliding Partition Walls

Bunge Glass Partition Systems-Technical Information

Series BG65 Glazing Glass Partition BG85 Aluminum Frame Glass Partition BG85 Sound proof Glass Partition
Panel suspension Top hung only Top hung only Top hung only
Track system Single or twin point Single or twin point Single or twin point
Panel thickness 36mm 85mm 85mm
Panel height Up to 3000mm Up to 6000mm Up to 6000mm
Max height 3000mm 6000mm 6000mm
Panel width 800-1100mm 800-1100mm 800-1100mm
Frame construction Top and bottom aluminum Aluminum frame Aluminum frame
Glass thickness 10mm single glass 10mm or 12mm single glass double 10mm glass
Fire safety Optional Class O Optional Class O Optional Class O
Vertical profiles n/a n/a Aluminum anodised with sealing profiles
Retractable seals n/a n/a Aluminum black with double rubber seals
Operation of seals n/a n/a
Pass doors Fixed full height door Fixed full height door Fixed full height door
Locking Optional lock to panel Optional lock to panel Optional lock to panel
Sound insulation n/a n/a n/a
Weight Approx 30 kg/sq M Approx 32 kg/sq M Approx 50 kg/sq M

Conference Room Decorative Aluminum Clear Glass Sliding Partition Walls

2,FIXING

Movable Exhibition partition wall is also called sliding partition wall or movable sound insulation wall, which is widely used to divide big room into small rooms. Each piece of partition can turn 360 degree which makes it flexible. Different core materials decide its sound insulation performance and various finishes make it adapt to many projects such as hotel, exhibition hall, restaurant, multi-functional room, etc.

Conference Room Decorative Aluminum Clear Glass Sliding Partition Walls

Installation:

Aluminium windows & doors installed in right way recommended by BUNGE installation team
We have been this industry for many years

We know very well on installation solutions

We can recommend proper window systems to match your wall systems

Contact us now

You will be happy with us including products,installation solutions ...
