2017 High Quality Hanging System Operable Sliding Partition Walls
the section configuration of special wooden acoustic panel: substrate, felt and surface.
1)substrate(basal material): based on high quality of 12/15/18mm MDF with density of 750kg/m3,
more choices for basal material:HDF, E1 ECO-friendly MDF and Fireproof MDF(B1 grade).
2)feld: acoustic fleece, pasted on the back of the panel, noise reducible and fire resistant(made in CHINA, GERMANY AND FRANCE)
3)surface: available in three different finishes: real wood veneer, printed wood melamine finished and fireproofing surface.
Bunge Operable Wall Systems-Technical Information
| TYPE | BG65 | BG85 | BG100 & BG125 |
| Panel suspension | Top hung only |
| Track system | Single or twin point |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Panel height | Up to 4000mm,heights greater than 3000mm refer to our technical dept. | Up to 6000mm, heights greater than 6000mm refer to our technical dept. Inset passing doors above 2400mm. Full height passing door up to 3000mm high document ‘M’ disabled doors optional. |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' | 500 - 1200mm 1' 5/8" -- 4' |
| Frame | Aluminum | Aluminum | Aluminum |
| Surface material | 9mm | 9mm | 12mm |
| Fire safety | Optional class I | Optional class I | Optional class I |
| Vertical profiles | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional | Aluminum, anodized with sealing profiles, painter optional |
| Retractable seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals | Aluminum, black with double rubber seals |
| Operation of seals | Manual, with supplied operating handle |
| Locking | Optional lock to passing doors |
| Passing doors | Single open in one panel or double open in two panel |
| Sound insulation | 32-38dB Rw | 36-45dB Rw | 42-55dB Rw |
| Weight | Approx 22-35kg/sq M | Approx 25-40kg/sq M | Approx 30-48kg/sq M |
Features:
1. Partition wall thickness:65mm;
2. General color is wooden color; other colors are available, and the price will be added;
3. It is easy to install. Total frame will be assembled layer upon layer overlay; Using buckles bar fix the glass or panels, and each glass or panel will be removed;
4. Cable trunking is not available;
5. MFC panel will be thickness.
6. Whatever horizontal or vertical direction, the partition's dimension error is less than 40mm;
suitable used in:
1.studios, recording rooms, listening rooms, rehearsal rooms and more professinally interspace timbre projects.

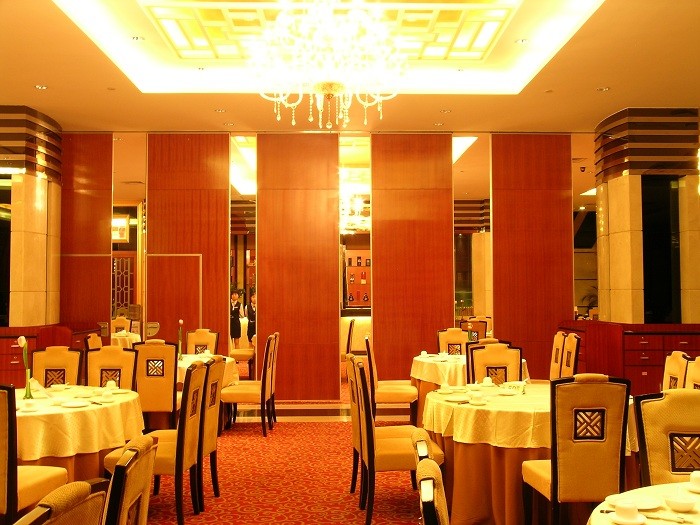

2.theaters, indoor gymnasiums, discos, KTV rooms and more performance and entertainment location.
3.meeting rooms, offices, halls, hotels and more sound absorption and secrecy projects.
4.air-port, railways, bus-stops, manufactories, workshops and more noise reduction projects.
