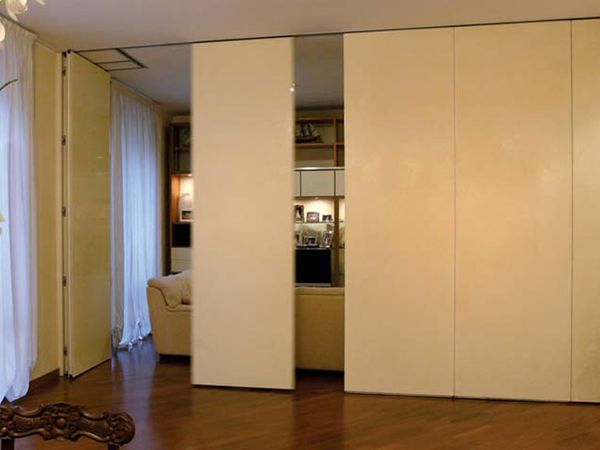

Ballroom Wooden Sliding Movable Acoustical Partition Walls Panels
Specifications of Sliding Partition Walls System
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65mm | 85mm | 100mm |
| Max height | 4000mm | 6000mm | 18000mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9mm | 9mm | 12 mm |
| Pass doors | Single door or Double door |
| Sound insulation | 28-38dB Rw | 28-42dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
Advantages of Sliding Partition Walls
1.High Soundproof and High Quality
The Rw for acoustic insulation (acoustic rating from 32dB to 55dB) is a fundamental aspect of movable sound-insulated walls and partitions. Bunge sliding partition walls are manufactured in accordance with strict construction and testing criteria to give a high level of quality. (These characteristics also apply to our special products like access doors that are fitted within wall systems. Furthermore, each individual project is given special attention at the design stage so that the requested sound-insulation is always attained. )
2.Easy to Operate
Movable sliding partition walls systems have the characteristic of being very easy to maneuver and position. This is the result of the high quality, long-lasting components. The panels have a tongue-and-grove profile designed to obtain a perfect visual, geometric and sound-insulation continuity solution. An extendable pressure seal element is located at the top and bottom of each panel that provide sealing and panel stability to the floor and ceiling. Access doors, which are available in different sizes, are inserted in the panels and do not exceed the thickness of the wall system. Doors can be single of double leaf. The locking and releasing of the panels is done in an easy and rapid manner by means of a removable handle that operates a mechanical system. Sliding partition walls panels are also easily slid on the overhead guide and this is guaranteed by a reliable mono or bi-track device and also because all systems have no floor guide. Panel storage is also extremely simple and can be designed to be hardly visible and various configurations are possible.
Features of Sliding Partition Walls System
◆Individual panels that can be stored away for maximum space usage.
◆Operable top and bottom seals for effortless operation.
◆Aluminum frame construction for enhanced acoustics.
◆The system offers various levels of sound reduction.
◆Unique track and carrier system ensuring quiet.
◆easy operation.
◆Numerous panel stacking options for complete flexibility.
◆Top hung and no floor track.
◆Extensive range of surface finishes can be availabled.
