Hanging System Soundproof Movable Partition Walls For Office and Church

Product Categories
Guangdong Bunge Building Material Industrial Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

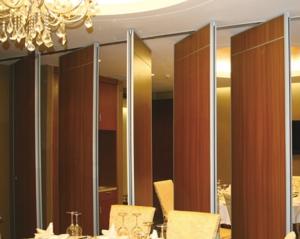

Hanging System Soundproof Movable Partition Walls For Office and Church

Brand Name : BANGE

Model Number : 85 mm movable partition walls

Certification : ISO9001

Place of Origin : Guangdong

MOQ : 10 square meters

Price : US Dollars 80 - 120 per square meters

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 50000 square meters per month

Delivery Time : 15-20 days

Packaging Details : Carton package, MDF batten on four section sides , foam board on both front face.

Open style : sliding

Product name : Movable partition walls

Feature : Sound proofing

Size : 85 mm

Color : Accept customized

Application : Office,hotel,banquet hall

Panel width : 500 mm--1230 mm

Door material : Melamine board

Surface : Melamine,leather,fabric,plywood

Position : Interior

Width : 85 mm(3 1/4 inch)

Contact Now

Hanging System Soundproof Movable Partition Walls For Office and Church

Movable partition walls description

The BUNGE movable partition wall is aluminum-framed operable partition is the most versatile operable wall constructed today. Partitions are a series of flat panels, approximately range from 600mm(23") to 1200mm(47") wide. They have a wide array of features and options to meet most design and budget requirements. Models are acoustically rated, available in 65mm(2.6") ,80mm(3")or 100mm(4") thick models, and in single, pair hinged configurations.

Movable partition wall system are 2-1/4”tongue-and-groove unitized panel system. Panels are 24” wide, precision laminated, and pre-finished with vinyl, fabric or other specified finish. Panels are manufactured at various heights up to 59’. All vertical and horizontal structural members consist of extruded aluminum components, with a snap-on base made of extruded vinyl. Panels lift into floor and ceiling tracks to form a rigid, uniform wall system that provides excellent sound transmission resistance with a STC rating of 35 to 58dB.

The BUNGE movable partition wall is a top quality moveable wall system that allows you to optimize the use of available space with speed and ease.

Acoustics

The movable partition walls system offers various levels of sound reduction starting at 35 dB through to 58dB. All of these levels have certification awarded by reputable independent acousticians. They are not based "in-house" test. Copies of certification available on request.

Fire Performance

Class "0" or "1" Spread of Flame Panels are available to your requirements.
This type of product has 1 hour and 1/2 hour fire assessments.

Hanging System Soundproof Movable Partition Walls For Office and Church

The operablation of movable partition walls

The continuously hinged panels are pulled from their parked position to ‘close’ (or extend) the wall and pushed back to the parked position to ‘open’ (or fold)the wall. Final flat alignment of wall panels is assisted pneumatically by a gas piston located in the top track. A lever or recess handle is fitted to the lead panel and this combined with a vertical rebated profile provides the system with its pass door. The door is available with or without a lock cylinder.

Retractable pressure seals on top and bottom are extended and retracted by a single 180°turn removable operating handle.

Once the movable partition walls panel is positioned, they are sealed in place with retractable pressure seals.

Final closure of the movable partition wall is achieved by extending a telescopic sleeve on the last panel. The sweep strip simultaneously extends the top and bottom. The rubber sealing strip on the side edge of telescopic panelcan seal the wall tightly to reach acoustic integrity.

Hanging System Soundproof Movable Partition Walls For Office and Church

List of Movable Partition Series Parameter
Modle
Specification (mm)
Acoustic Coefficient (dB)
Sealing Scale Range (mm)
Weight (kg/m2)
Faceplate Material
Thickness
Width
Height
65#
65
600-1230
4500
30
45
18
Melamine
34
45
22
MDF
35
45
24
Plaster Board
36
45
24
Mgo Board
38
45
26
Acoustic Panel
85#
85
600-1230
7500
38
45
26
Melamine
42
45
27
MDF
43
45
27
Plaster Board
44
45
30
Mgo Board
46
45
36
Acoustic Panel
100#
100
600-1230
9000
52
60
42
Melamine
56
60
44
MDF
57
60
44
Plaster Board
58
60
46
Mgo Board
60
60
48
Acoustic Panel
ultrahigh
100-125
600-1100
8000-16500
50-60
60
58
All Board

Movable partition walls features

Movable, top hung system without the need for a floor track

Retractable top and bottom seals ensure effortless movement of panels

Combines elegance with robust construction

Concealed or exposed panel edge profiles

Numerous panel stacking options for complete flexibility

Sealed for life roller assemblies provide smooth and silent movement

Various levels of sound reduction
