The Special Point Processing on Movable Partition Wall System
1. Horizontal Seals
The principle of double skin construction on movable and operable partition system is applied consistently in the seal area in order to ensure maximum sound insulation. A spindle mechanism presses extendable, spring loaded, double seals against the floor and the ceiling track. Any irregularities in the flooring are offset by spring-loaded double chamber seals. The contact force of the sealing strips does not place excessive strain on screed floors, but does ensure that the flexible system is sufficiently stable to prevent the panels moving, even in the event of an attempted forced entry.
2. Corner Seals
Flexible resolves the technical issue of corner seals with specially designed, corner pieces that also reinforce the stability and done insulation properties of movable and operable partition system.
3. Magnetic Strip
The individual panels are centered via the magnetic strips to guarantee sound positive locking and sealing.
4. Operating Handle
In manual systems, the element sealing strips are operated using a crank. The crank has as a captive bayonet fitting to prevent it from being pulled off. The bayonet arrangement is easy to disengage and prevents crank slip page on movable and operable partition system.
5. Frames
The frame is made by torsion hollow-chamber aluminum alloy and sectional by steel tubing. Therefore, Transverse forces will not cause any deformation for the frame. Combined with the panel mounted in acoustically free suspension, flexible elements are able to offer both exceptional strength and outstanding sound insulation for movable and operable partition system.
6. Roller Assemblies
The dampening track roller assemblies prevent the transmission of impact forces and operating noise, to protect the element, rail and carrier on movable and operable partition system.
Easy Parking on Movable and Movable Partition Wall System

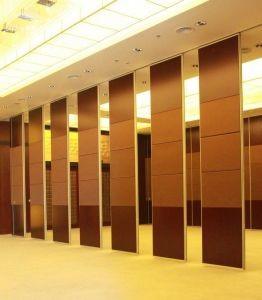

In their stacked position, the movable partition walls panel form compact package and can be accommodated in the smallest of spaces depending on the room situation. The low weight of the panel and the associated structural advantages are particularly noticeable here. The four standard stack or parking track systems offer convenient operability with a minimum of noise from the individual panels as they slide into position on movable and operable partition system.We offer a range of suspension systems to suit each installation and application.
According to the project's actual size, combined with precise design of the auxiliary track, the movable partition can fold orderly, flexible and diverse collection.
