Excellent Quality Banquet Hall Removable Movable Folding Partitions Wall Price
Folding Partition Walls Advantages
- High Soundproof and High Quality
The Rw for acoustic insulation (acoustic rating from 32dB to 55dB) is a fundamental aspect of movable sound-insulated walls and partitions. Bunge products are manufactured in accordance with strict construction and testing criteria to give a high level of quality. (These characteristics also apply to our special products like access doors that are fitted within wall systems. Furthermore, each individual project is given special attention at the design stage so that the requested sound-insulation is always attained. )
Movable systems have the characteristic of being very easy to maneuver and position. This is the result of the high quality, long-lasting components. The panels have a tongue-and-grove profile designed to obtain a perfect visual, geometric and sound-insulation continuity solution. An extendable pressure seal element is located at the top and bottom of each panel that provide sealing and panel stability to the floor and ceiling. Access doors, which are available in different sizes, are inserted in the panels and do not exceed the thickness of the wall system. Doors can be single of double leaf. The locking and releasing of the panels is done in an easy and rapid manner by means of a removable handle that operates a mechanical system. Panels are also easily slid on the overhead guide and this is guaranteed by a reliable mono or bi-track device and also because all systems have no floor guide. Panel storage is also extremely simple and can be designed to be hardly visible and various configurations are possible.
Design and technology are the essentials of a successful alliance of partition. The transformation of a large hall into two or more sound-insulated areas which perfectly respond to the requirements of the designer and the needs of the final user without sacrificing style and functionality, can all be achieved by means of Bunge movable sound-insulated walls. In view of the wide choice of finish available, Bunge movable walls can be personalized according to the individual whim or requirement.
The operable wall series is used wherever room space needs to be fully utilized. Hotels, conference centers, multi-function rooms, banquet halls, offices, training areas, etc. can all benefit from the flexibility of Bunge movable operable walls.
Folding partition walls technical Information:
| Series | BG65 | BG85 | BG100 |
| Panel suspension | Top hung only | Top hung only | Top hung only |
| Panel thickness | 65 mm | 85 mm | 100 mm |
| Max height | 4000 mm | 6000 mm | 18000 mm |
| Panel width | 500-1200 mm | 500-1200 mm | 500-1200 mm |
| Face material | 9 mm | 9 mm | 12 mm |
| Pass doors | Single door or Double door |
| Sound insulation | 20-32dB Rw | 28-36dB Rw | 32-50dB Rw |
| Finish Material | Plywood, MDF, Laminate, Melamine, Gypsum board, Fabric, Leather, Insulation board, Fireproof board, Wall paper, Vinyl, Painting, etc. (Customized) |
| Height (maximum height) | 3500mm |
| Width | 450~~1200mm |
| Thickness | 65mm |
| Left and right telescoping | 140mm |
| Stretching up and down | 45mm |
| Push and pull force | 20N |
| Orbital load | 225kg/m |
| Sound insulation coefficient | 32DB |
| Panel material | Three amine board |

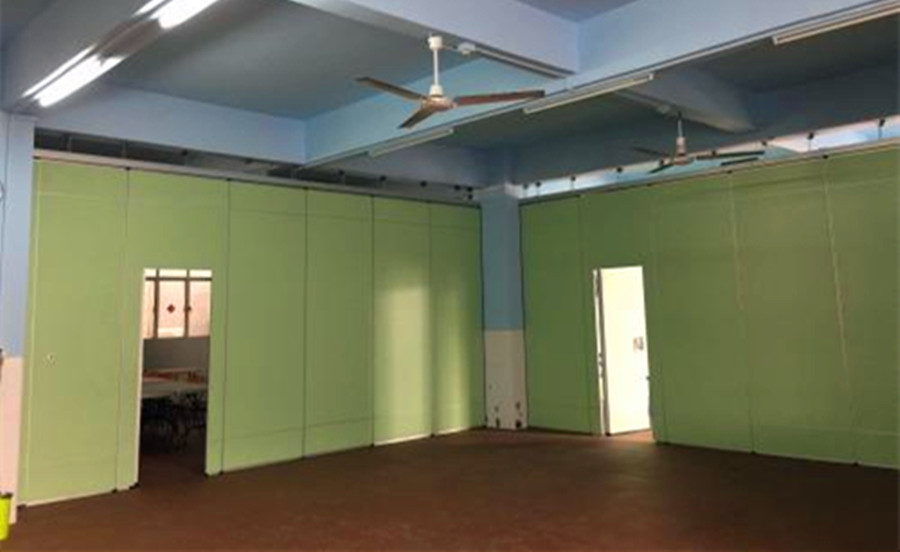

Movable Partition Walls Cases
Project site: India
Model: BUNGE 85 mm movable partition walls
Width: 3*10550 mm,1*6900 mm
Height: 3760 mm
Total: 4 sets, 145 square meters
Finish: Melamine
Color: CS-3087
