Customized Melamine Finish Soundproof Acoustic Operable Folding Sliding Partition Doors
Sliding partition walls details

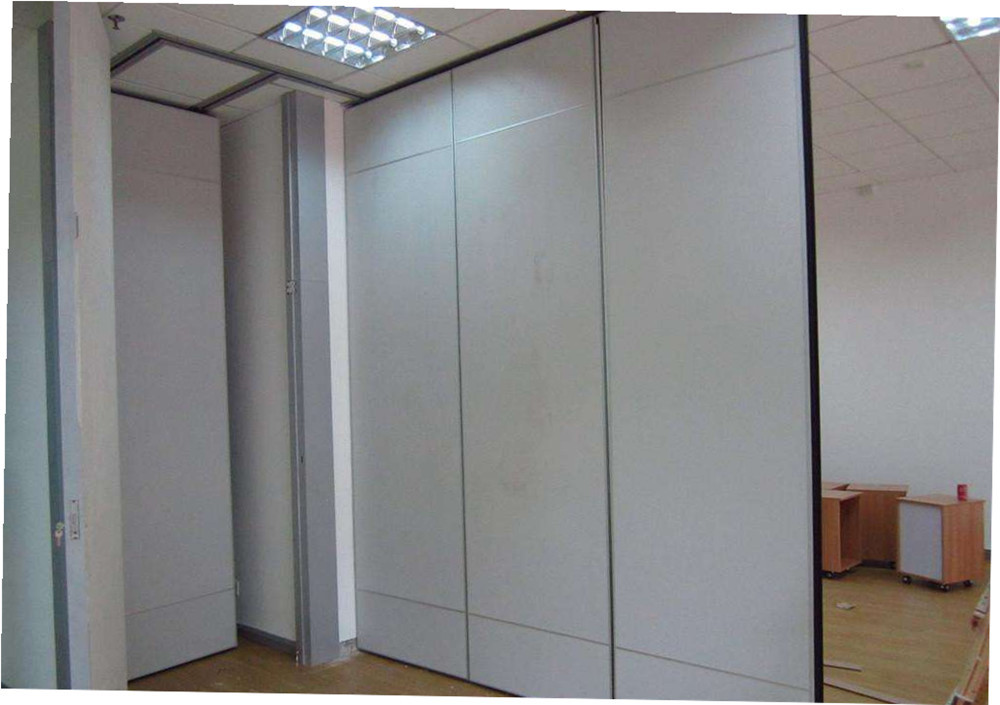

BUNGE sliding partition walls are made of high quality anodized aluminum frame with environmentally composite materials.They just move on a ceiling track with no requirement of floor guides or rails.The auditorium partition walls have a standard thickness of 65mm,85mm and 100mm,and a width up to 1219mm.Maximum height can reach 17meter tall.Of course we will recommend a professional planning for you according to the height at your site.
The sliding partition walls using sound-absorbing glass fiber,the fire resistance,thermal resistance and noise reduction coefficient are in line with the American ASTM standards.with top and bottom retractable mechanism in the middle,MDF,plywood or plaster base board are as base board on both sides.Also the aluminum tracks and tracks can be powder coated into different colors.
Nowadays,BUNGE Company works with Architects,designer,developers,contractors and owners in design product selection,decorative finishes,project management and 3 years after-sales warranty services as our one-stop solution business service.Actually all of the restaurant partition walls can be customized,including the size,the surfaces and the colors.For more information about the restaurant partition walls,please feel free to contact us at any time.
Sliding partition walls technicals
| Model | BG-65 series | BG-80 series | BG-100 series | BG-high series |
| Suspension system | Aluminum hanging | Aluminum hanging | Aluminum hanging | Steel hanging |
| Basic thickness | 65mm | 85mm | 100mm | 100mm |
| Total thickness | 65/75/85/95mm | 85/90/100/110mm | 100/120/130mm | 100/120/130mm |
| Max height | Up to 3800mm | Up to 4500mm | Up to 6500mm | Up to 12000mm |
| Width | 600-1230mm | 600-1230mm | 800-1230mm | 800-1230mm |
| Floor/ceiling sealing strength | Telescopic aluminum tube with rubber strip |
| Side walls sealing strength | Double seal tape |
| Sound insulation level | 26dB-30dB | 28dB-34dB | 32-40dB | 32-40dB |
| Panel structure | Aluminum frame with wooden keel | Aluminum frame with steel keel |
| Panel density | 22-28kg/sqm. | 24-32kg/sqm. | 32-50kg/sqm. | / |
| Surface material | Melamine laminate/fabric/PU leather/wallpaper/veneer/customized |
Action Now:
1:Buy 30 square meters Get 5% Discount.
2:Buy 80 square meters Get 10% Discount.
3:Get a FREE SAMPLE.
4:Support a 3 YEARS WARRANTY.
5:Contact us for more details-Whatsapp:008613928983277.
Sliding partition walls applications :
Our products (Sliding partition walls) are widely used in the hotel banquet halls , meeting rooms , exhibition halls , conference rooms , International Convention Centers , KTVs , upscale restaurants , office buildings , schools , hospitals and others .
Bunge aluminium sliding partition wall and operable partition wall acoustic movable partition for convention & exhibition centre ( used office room dividers , wood partition , movable wall , restaurant partitions , soundproof folding partition , moveable partition , wall partition , living room partition wall, sandwich panel price, accordion wall , economic partition walls , folding wall, foldable partition wall, folding partition wall , movable sound proof partition , removable wall partition , folding partition , removable partition , partition, partition wall, room divider , room dividing partition , office partition , folding partition wall panel , folding wall panel , folding wall systems )
Sliding Partition Wall are specified where functional space delineation is an integral element within the acoustic partitions project . Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximize space utilization . Principle applications include office interiors , meeting rooms , sports and leisure facilities , schools , colleges ,churches , conference and function suites , exhibition centers , banks and restaurants .
