Acoustic Movable Conference Room Partitions / Folding Office Partition Wall

Conference Room Movable Room Partitions Office Acoustic Sliding Folding Partition Walls

Procedure of Installing Folding Partition Walls

1. Please designate the responsible person before construction and leave contact information to facilitate communication between the two parties on construction logistics.

2. If the ground has been finished before the track construction, if the carpet, floor tiles, floor, etc. have been laid, you need to do ground protection to prevent the welding sparks from damaging the ground.

3. You need to provide the height of the shed after the decoration is completed. We will determine the height of the track installation according to this height.

4. Because we need to calculate the size of the hanging track, you need to provide the net size of the finished wall and the pillar. We will hang the track according to this size.

5. After the track suspension is completed, the reserved wall size given by you cannot be changed. Because we calculate the construction according to this size, if the size is changed, the door panel will not operate.

6. After the track suspension is completed, our construction personnel will fill in the dimensional confirmation letter to provide accurate data for the production of the wallboard. You need to specify the person in charge of the site to confirm.

7. The movable folding partition should be horizontally perpendicular to the ground directly below the track, and the error should not exceed 1cm.

8. If there are other constructions at the same time, please do not pierce the foreign objects such as nails and insert them on the installed rails. This will cause the door pulleys to not run in the track.

9. Each group of tracks will have a “raw mouth”, which will be removed before installing the door panel, and then installed after the door panel is installed. This "raw mouth" cannot be sealed.

10. In order to facilitate future maintenance and maintenance, please reserve the inspection port near the ceiling track to facilitate the maintenance personnel to enter the inspection port for product maintenance and maintenance.

11. If you need to improve the sound insulation effect of the product, after the track is hung, you can make sound insulation between the track and the original shed.

12. After the door panel is hung, it needs to be debugged. Active partition reminder Do not use the door panel before our personnel have debugged the door panel, otherwise forcible use will result in damage to the door panel.

Specifications of Folding Partition Walls System

Features of Folding Partition Walls

1- 65mm ,85mm, 100mm aluminum frame thickness panel ,Max height up to 15 meters.

2-Top supported without floor track or guide, only have track on the ceiling.

3- clear anodized extruded aluminum tracks and frames,customized powder coated color are available.

4- Sound insulation certificate :STC 32db to 52db, ASTM standard of acoustic tested in HongKong.

5- Available in wide range of finishes, melamine ,fabric/PU leather, HPL, printing etc.

6- Fast delivery and Rich experiences in oversea project installation guide & supervision.

Action Now:

1:Buy 30 square meters Get 5% Discount.

2:Buy 80 square meters Get 10% Discount.

3:Get a FREE SAMPLE.

4:Support a 3 YEARS WARRANTY.

5:Contact us for more details-Whatsapp:008613928983277.

acoustic folding partition

soundproof folding partition

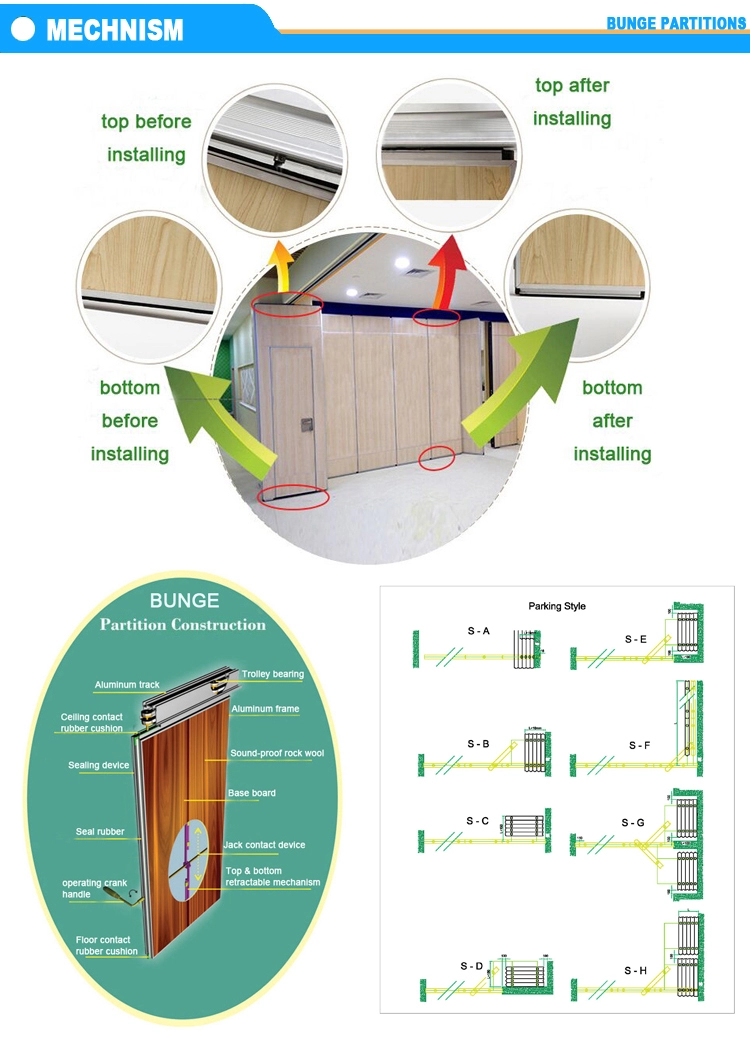

Acoustic Movable Conference Room Partitions / Folding Office Partition Wall Images
