Banquet Hall Sliding Soundproof Folding Wooden Movable Partition Walls
The details of movable partition walls
Movable partition walls are specified where functional space delineation is an integral element within the partition project. Due to their flexibility and cost effectiveness they allow large rooms to be conveniently sub-divided to maximise space utilisation. Principle applications include office interiors, meeting rooms, sports and leisure facilities, schools, colleges, churches,conference and function suites, exhibition centres,banks and restaurants.
All of our movable partition walls are of the highest quality, very robust and easy to manoeuvre, and manufactured in the UK, the panels can be stacked either in-line (single point suspension) or off-line at either end of the top track (two point suspension), with different track variations possible to suit your needs.
Movable Partition Walls allow you to segregate your space for maximum potential, and are the perfect flexible space-saving solution for areas that require a partition with a higher specification.
We design and manufacture value for many products with one year's warranty on all the outstanding ranges illustrated in this brochure.
They offer a complete service package covering site surveys, CAD technical drawings, and quotation presentation. Emphasis is placed on quality assurance backed by a comprehensive after sales service.
Specifications of Acoustic Movable Partition Walls System
| MODEL | 65 movable partition wall | 80 movable partition wall |
| Panel Thickness | 65mm | 85mm |
| Panel Width | 680mm-1210mm | 680mm-1230mm |
| Panel Hight | 2000mm-4500mm | 3000mm-6500mm |
| Frame | GB 6063 T6 Aluminium | GB 6063 T6 Aluminium |
| Acoustic alreduction coefficient(db) | 32db | 45db |
| Hermetic flex distance(mm) | 45mm | 45mm |
| Weight(kg/m) | 17,19,20,24 | 24,25,28,38 |
| Panel Material | Class-fibr board,Melamine decorative lamminate board, Gypsum board,Color steel plate ,Fiberboard,Tempered glass | Class-fibr board,Melamine decorative lamminate board, Gypsum board,Color steel plate,Fiberboard,Tempered glass |
| Panel Surface Finish | Anodizing,electrophoresis, Powder coating; Wooden grain or customize surface treatment | Anodizing,electrophoresis, Powder coating; Wooden grain or customize surface treatment |
| Advantages | 65 light-based activities are cut off cut off,their light weight,flexible operation,each door can be a single A hanging round hanging sliding door can be rotated 360 degrees,or two hanging round hanging round slide can turn. | 85 screen-based activities are better off cost, weight,moderate and flexible operation,each door can be a single hanging round hanging sliding door can be rotated 360 degrees,or two hanging round hanging round slide can be Tum can be pushed to move anywhere. Slide show steady and smooth transformation of space diversity. |
| High degree | 2-4.5m | 3-6.5m |
| The largest rail loading | 250kg/m | 450kg/m |
| Usage | Widely used in hotels,guesthouses and medium-sized exhibition, multi-functional conference hall. | Widely used in hotels,luxury suites, function rooms,exhibition center. |
| Installation methods | slide type, curve type and folding type. | slide type, curve type and folding type. |
| MODEL | 100 movable partition wall | Ultrahigh movable partition wall |
| Panel Thickness | 100mm | 120mm |
| Panel Width | 680mm-1230mm | 680mm-1230mm |
| Panel Hight | 5000mm-8500mm | 7000mm-17000mm |
| Frame | GB 6063 T6 Aluminium | GB 6063 T6 Aluminium |
| Acoustic alreduction coefficient(db) | 60db | 60db |
| Hermetic flex distance(mm) | 45mm | 60mm |
| Weight(kg/m) | 40,45,48,55 | 60,60,60,60 |
| Panel Material | Class-fibr board,Melamine decorative lamminate board ,Gypsum board,Color steel plate,Fiberboard,Tempered glass | Class-fibr board,Melamine decorative lamminate board, Gypsum board,Color steel plate ,Fiberboard,Tempered glass |
| Panel Surface Finish | Anodizing,electrophoresis, Powder coating; Wooden grain or customize surface treatment | Anodizing,electrophoresis, Powder coating; Wooden grain or customize surface treatment |
| Advantages | 100 active partition is partition noise effect of a good,moderated 360 degrees,or both may be round hanging Tum can push the slide to any place.Slide show steady and smooth transformation of space diversiyt. | Ultra-high partition screens employ heavy-duty steel rails and steel hanging wheels that the effective sliding can amount to 100,000 times,which is a leading technology in partition industry. |
| High degree | 5-8.5m | 7-17m |
| The largest rail loading | 650kg/m | 1250kg/m |
| Usage | Widely used in various types of training room,a large hotel,banquet hall. | Widely used in airports and large exhibition hall and place. |
| Installation methods | slide type, curve type and folding type. | slide type and folding type. |
The 65 mm frame of the sliding partition walls
The frame of the 65-type sliding partition walls refers to the material used for the frame when the door panel is spliced. The 6055-T6 high-hardness aluminum alloy material can be used as the raw material for the partitioning aluminum alloy. The conventional oxidation color can be processed according to the customer's other colors.
The total thickness of the 65-type sliding partition walls frame can be 65mm. According to the thickness of the door panel, there are several models such as 65 type, 85 type and 100 type.
The 6-type mobile sliding partition walls uses 9mm slots on both sides as the fixed position of the board, and the middle is filled with soundproof cotton. Built-in transmission rod, with the principle of jack, easy to lock the sliding partition wall with the transmission setting, the fixed partition wall is as strong and solid as the solid wall. As long as the track is pre-buried before the ceiling is made, there is no need to lay the track on the ground.
Product Tags:
|
|

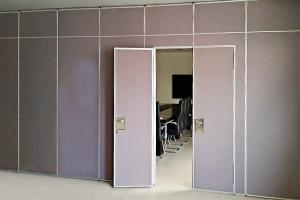

Soundproof Foldable Wooden Movable Partition Walls for Banquet Hall / Airport Images
|
